Three deposits from explosive eruptions at the summit of Mauna Loa are located west, northwest and east of Moku‘aweoweo, the volcano’s summit caldera. In map view, these deposits are fan-shaped. Along the ‘Ainapo Trail, 2.8-3.5 km (1.7 to 2.2 mi) southeast of the caldera, several kipuka expose a fourth distinct explosive deposit.
Hawaiian volcanoes usually produce lava flows, which are generally benign. But a small percent of the volcanic products is explosive in character. Since risks associated with explosive eruptions are much greater than those associated with lava flows, investigating the deposits on Mauna Loa is an important part of understanding how Hawaiian volcanoes work and the full range of hazards they pose.
In 1840, an expedition led by Lt. Charles Wilkes provided the first documented investigation of Mauna Loa’s summit caldera. Assessing the area where today’s Hawaii Volcanoes National Park summit cabin is located, Wilkes stated, “Nothing can exceed the devastation of the mountain: the whole area of it is one mass of lava that has at onetime been thrown out in a fluid state from its terminal crater. There is no sand or other rock; nothing but lava, on whichever side the eye is turned.” This suggests he saw no explosive deposits.
In 1885, surveyor J.M. Alexander made the first written description of deposits on the rim of the caldera. Thomas Jaggar, founder of the Hawaiian Volcano Observatory, later associated these scattered ash and blocks with the “extraordinary” eruption column in the opening phase of the 1877 eruption described by missionary Titus Coan: “It looked as if the summit of the mountain was melted, as if the heavens were on fire. Vast columns of illumined steam rose liked flaming gases from the burning pit, rushing upward with fearful speed to the height of 14,000 to 17,000 feet … ”
While ascending Mauna Loa in 1924, William O. Clark, a former U.S. Geological Survey geologist, noted explosion deposits in a kipuka along ‘Ainapo Trail. He concluded the eruptions producing the debris were phreatic (explosions produced by the interaction of groundwater and hot rock or magma) in origin.

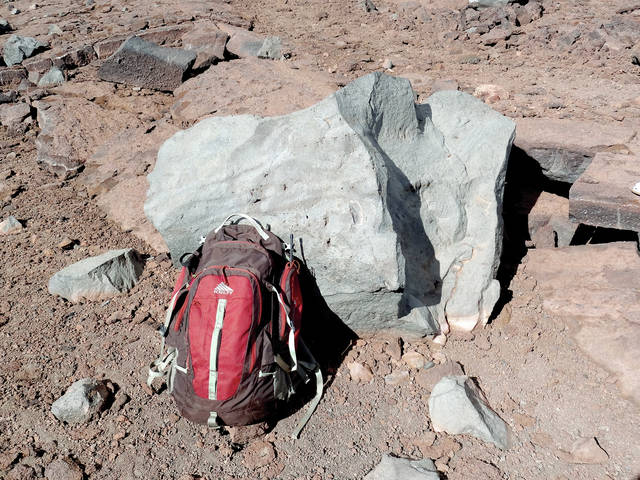

In 1949, Hawaiian Volcano Observatory geologist Gordon Macdonald observed that “angular blocks of rocks ejected by explosions are scattered about the rim of Moku‘aweoweo,” with maximum diameters of 1.5 m (5 ft) on the northwest fan. At the national park’s summit cabin, he noted an abundance of ash as well as blocks up to 1 m (3 ft) in size. He, too, concluded the eruptions were phreatic and the deposits were caused by a series of explosions from the summit caldera area.
Observations of explosive eruption deposits on Mauna Loa led to this question: When did the explosions occur?
Charcoal is normally used to date lava flows, but it is not found above tree line. Therefore, geologists use cosmogenic radionuclide (exposure) dating to establish reliable ages of the rocks around Moku‘aweoweo, which have been steadily exposed to cosmic rays.
In a study of the deposits, representative samples from each fan and the underlying lava flows (substrate) were collected. Rocks from all three fans near Moku‘aweoweo were processed using the exposure dating technique.
Results from exposure age-dating of the three west fan ejecta samples yield an average age of 870 before present (BP). The average age of the underlying lava flows is 980 years BP.
From the northwest fan, a single block yielded an age of 830 years BP. The substrate age of 575 years BP was deemed a poor analytical result and discarded.
The east fan’s exposure ages for two blocks are 220 and 150 years BP, making this deposit very young. The average age from five substrate samples near the summit cabin is 980 years BP.
The age of the deposit along the ‘Ainapo Trail was also deemed unacceptable.
Mauna Loa has had at least four explosive phreatic eruptions from the caldera region in the past 880 years, with at least one in post-contact time (since 1823). Although no one lives at the summit of Mauna Loa, additional explosive summit eruptions have the potential to pose a threat to people on the ground and to aircraft.
Volcano activity updates
This past week, Kilauea Volcano’s summit lava lake level fluctuated with summit inflation and deflation, ranging about 19-32 m (62-105 ft) below the vent rim. On the East Rift Zone, the 61g lava flow remained active, with breakouts on the upper part of the flow field closer to Pu‘u ‘O‘o. There were no active lava flows on the pali, coastal plain or entering the ocean. The 61g flows do not pose an immediate threat to nearby communities.
Mauna Loa is not erupting. Rates of deformation and seismicity have not changed significantly during the past week, but persist above long-term background levels. Only a few small-magnitude earthquakes occurred beneath the volcano, primarily at depths shallower than 5 km (3 mi). GPS and InSAR measurements continue to show slow deformation related to inflation of a magma reservoir beneath the summit and upper Southwest Rift Zone.
One earthquake with three or more felt reports occurred on the Island of Hawaii this past week: a magnitude-2.5 earthquake 1 km (0.6 mi) southeast of Captain Cook at 10 km (6 mi) depth at 10:02 p.m. April 9.
Visit HVO’s website (https://volcanoes.usgs.gov/hvo) for past Volcano Watch articles, Kilauea daily eruption updates, Mauna Loa weekly updates, volcano photos, maps, recent earthquake info, and more. Call for summary updates at 808-967-8862 (Kilauea) or 808-967-8866 (Mauna Loa). Email questions to askHVO@usgs.gov.
Volcano Watch (https://volcanoes.usgs.gov/hvo/hvo_volcano_watch.html) is a weekly article and activity update written by U.S. Geological Survey Hawaiian Volcano Observatory scientists and affiliates.
