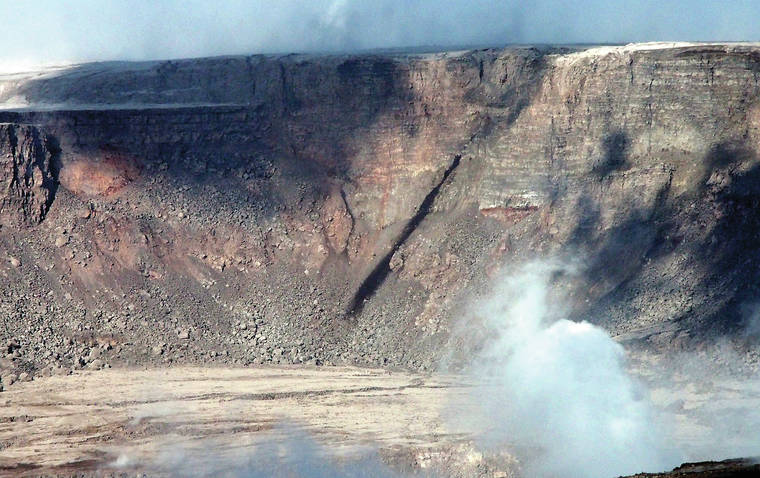

On July 4, 2018, an observer at the Volcano House Hotel was watching the evolving collapse of Halema‘uma‘u Crater, 4 km (2.5 miles) away. Suddenly he did a double take, blinked a couple of times, but couldn’t erase the dark line descending the wall of Kilauea caldera above Halema‘uma‘u. Not knowing what it was, he dubbed it the ‘black streak.’
Two ideas for this curious feature came to mind. One was that the streak was a fresh rockfall scar cutting across the dusty gray slope. The other was that the streak was made by water that washed away the dust.
Over the next few days, the black streak came and went. Finally, observations showed that the streak stayed black during a time when a lot of dust was billowing from Halema‘uma‘u. This was proof positive that it was made by water, not a rockfall.
The water flowed from a point 10–20 m (yards) below the rim of the caldera, high above the groundwater body that today feeds the deepening lake described in the past two Volcano Watches. This point is within the national park’s presently closed SW Rift wayside (marking the upper extent of Kilauea’s Southwest Rift Zone), beneath which are many vertical dikes of solidified magma. How can water be so high in this area?
We put two and two together. During exceptionally heavy downpours, a river flows for an hour or so across the ground surface between the south end of Uekahuna Bluff and SW Rift, a distance of 600–800 m (yards). The flowing river, which we nicknamed Kilauea river, is several meters wide and a few centimeters deep. Most notably, the flowing river always ends before reaching SW Rift, sinking into alluvial sand. Where does the water go? Could that be the water that forms the black streak?
Yes, we think so. Beyond where it disappears, the river water probably flows underground but is dammed by dikes beneath the SW Rift area, forming a shallow perched aquifer. Faulting of the caldera wall during the 2018 summit collapse opened a pathway for this stored water to exit the aquifer and pour into the caldera.
The black streak, more prosaically called a water cascade, has reappeared sporadically in the past 2 years. In fact, a couple of such ephemeral cascades may streak the same area. Any photographs of a black streak taken by a reader since 2018 would be much appreciated. Recent photos show a cavity at the head of one cascade, either a lava tube or drained magma conduit. Volcanic ash has been washed from the cavity and forms a deposit next to the cascade.
The perched water body responsible for the water cascade is one of two such bodies existing before 2018. The other formed a tiny warm pond on the caldera floor 500 m (yards) north of Halema‘uma‘u before it enlarged in 2018. Lush vegetation surrounded the pond, and microorganisms lived in the water.
The tiny pond drained as Halema‘uma‘u widened in 2018, though its site, marked by vegetation, remains. As the crater expanded in June and July, a white steam plume generally rose above the northwestern part of the crater, contrasting with the dusty brown clouds that engulfed most of the crater. The plume might have been generated by boiling of water in the same shallow aquifer that supported the pond.
Could other shallow water bodies exist unseen beneath the caldera floor? More rain falls on the northern part of the caldera than on the southern. Several caves below the northern caldera floor emit steam and are very hot, as cavers attest. Most likely the heat comes from solidified lava flows and lakes active in this area in the 19th and early 20th centuries, and it heats rainfall to steam. The steam persists even in dry weather. Does this suggest the presence of a deeper water body? Probably not, but we can’t be sure.
Any perched water body would doubtless pale in importance when compared with the more extensive groundwater reservoir that supports the present lake. Such bodies would be both smaller and higher (farther from magma) than the main reservoir. Nonetheless, we would be remiss not to consider that even shallow water could contribute to explosive hazards at the summit of Kilauea.
Volcano activity updates
Kilauea Volcano is not erupting. Its USGS Volcano Alert level remains at NORMAL (https://volcanoes.usgs.gov/vhp/about_alerts.html). Kilauea updates are issued monthly.
Kilauea monitoring data for the past month show variable but typical rates of seismicity and ground deformation, low rates of sulfur dioxide emissions, and only minor geologic changes since the end of eruptive activity in September 2018. The water lake at the bottom of Halema‘uma‘u continues to slowly expand and deepen. For the most current information on the lake, see https://volcanoes.usgs.gov/volcanoes/Kilauea/summit_water_resources.html.
Mauna Loa is not erupting and remains at Volcano Alert Level ADVISORY. This alert level does not mean that an eruption is imminent or that progression to eruption from current level of unrest is certain. Mauna Loa updates are issued weekly.
This past week, about 164 small-magnitude earthquakes were recorded beneath the upper-elevations of Mauna Loa; most of these occurred at shallow depths of less than 8 kilometers (about 5 miles). Global Positioning System (GPS) measurements show long-term slowly increasing summit inflation, consistent with magma supply to the volcano’s shallow storage system. Gas concentrations and fumarole temperatures as measured at both Sulphur Cone and the summit remain stable. Webcams show no changes to the landscape. For more information on current monitoring of Mauna Loa Volcano, see: https://volcanoes.usgs.gov/volcanoes/mauna_loa/monitoring_summary.html.
There were 2 events with 3 or more felt reports in the Hawaiian Islands during the past week: a M1.9 earthquake 5 km (3 mi) WSW of Kailua-Kona at 11 km (7 mi) depth on Aug. 10 at 10:28 a.m. HST and a M2.8 earthquake 3 km (2 mi) ENE of Leilani Estates at 6 km (4 mi) depth on Aug. 6 at 11:06 a.m. HST.
HVO continues to closely monitor both Kilauea and Mauna Loa.
Please visit HVO’s website for past Volcano Watch articles,for past Volcano Watch articles, Kilauea and Mauna Loa updates, volcano photos, maps, recent earthquake info, and more. Email questions to askHVO@usgs.gov.
Volcano Watch is a weekly article and activity update written by U.S. Geological Survey Hawaiian Volcano Observatory scientists and affiliates.
