In the four years since the 2018 Kilauea lower East Rift Zone eruption and summit collapse, HVO has been working to rebuild the monitoring network and provide other updates as part of the Additional Supplemental Appropriations for Disaster Relief Act of 2019 (H.R. 2157).
Before describing specific updates to the geodetic network at HVO, let’s first explore and define what we mean by ‘geodesy’ and the way we measure surface deformation in geoscience.
Geodesy is the study of measuring and understanding how the Earth’s surface deforms and changes. The main geodetic datasets currently used by HVO scientists to measure surface deformation (ground movements) are GNSS (global navigation satellite system, which includes GPS), tilt, and satellite radar (InSAR) imagery.
HVO’s geodetic monitoring network includes over 70 GNSS stations and 15 tiltmeters on the Island of Hawaii that continuously record and transmit data. These instruments require routine maintenance, must be upgraded periodically due to age, and must be replaced if destroyed by volcanic activity such as in 2018.
Current upgrades focus on rebuilding and improving HVO’s geodetic network in order to better detect, assess, and respond to volcanic hazards related to Hawaiian Volcanoes. Some of the network upgrades include replacing out-of-date instruments and improving HVO’s network of near real-time monitoring instruments at critical areas on Kilauea’s summit and rift zones to support early detection of magma movement and associated hazards.

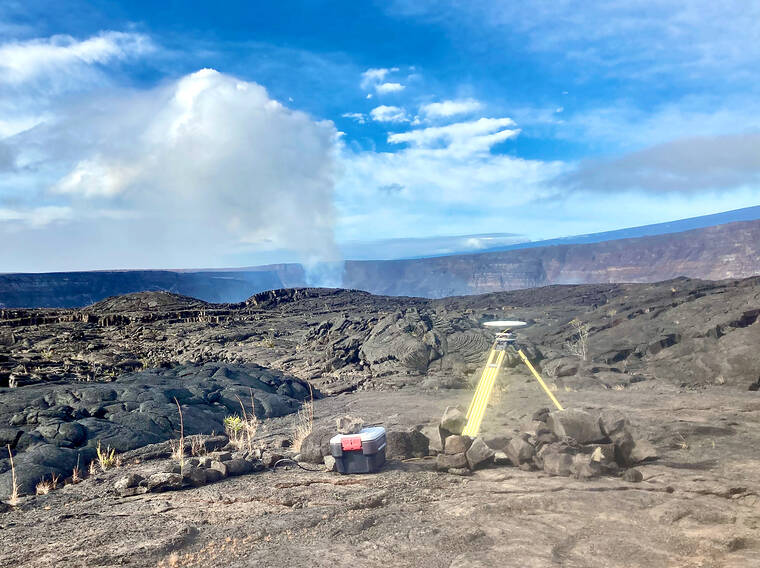

In 2018, lava flows destroyed 3 GNSS stations in the lower East Rift Zone. Another 3 GNSS stations were destroyed in the caldera collapses at Kilauea’s summit. HVO staff rapidly deployed new GNSS stations at nearby locations to allow for continued monitoring during the 2018 crisis. These rapidly deployed sites included GNSS antennas mounted on surveys tripods, which is a set-up typically only used for temporary deployments that last several days to weeks.
Many of these rapidly deployed sites were decommissioned and removed after 2018. However, approximately 13 of them are still being used for critical monitoring and remain on temporary tripods. These sites will be upgraded and hardened using engineered fixed monuments and masts instead. New sites will also be installed to replace sites destroyed in 2018.
GNSS receivers acquired by Supplemental funds have already supported emergency monitoring of active eruptions and other volcano-related activity. Data from these instruments help HVO detect volcanic activity and inform partners at Hawaii Volcanoes National Park (HVO), Hawaii County Civil Defense and Hawaii Emergency Management Agency.
For example, HVO rapidly deployed 3 new semi-continuous GNSS stations in response to the December 2020 Kilauea eruption. These stations gave scientists a more complete view of magma returning to Kilauea’s summit.
Similarly, HVO deployed rapid-response GNSS equipment at 2 pre-existing benchmarks during the Kilauea south caldera intrusion event in August 2021, allowing scientists to track the migration of magma from the south caldera to farther south. New instruments give HVO a more detailed understanding of and ability to monitor Kilauea’s volcanic processes.
HVO’s geodesy program plays a critical role in monitoring Hawaiian volcanoes. HVO’s updated geodetic network ensures that scientists can monitor changes in the shape of volcanoes, respond to eruptions, and understand magma storage and movement underground.
Thanks to Supplemental funding, HVO is in the best position ever to leverage our state-of-the-art geodetic network to gain insights into the active volcanoes in Hawai’i, assess their hazards, issue warnings, and advance scientific understanding to reduce the impacts of volcanic eruptions.
Volcano activity updates
Kilauea volcano is erupting. Its USGS Volcano Alert level is at WATCH (https://www.usgs.gov/natural-hazards/volcano-hazards/about-alert-levels). Kilauea updates are issued daily.
Over the past week, lava has continued to erupt from the western vent within Halema‘uma‘u crater. All lava is confined within Halema‘uma‘u crater in Hawaii Volcanoes National Park. Sulfur dioxide emission rates remain elevated and were last measured at approximately 1,250 tonnes per day (t/d) on August 19. Seismicity is elevated but stable, with few earthquakes and ongoing volcanic tremor. Over the past week, summit tiltmeters recorded two deflation-inflation sequences (DI-events). For more information on the current eruption of Kilauea, see https://www.usgs.gov/volcanoes/Kilauea/recent-eruption.
Mauna Loa is not erupting and remains at Volcano Alert Level ADVISORY. This alert level does not mean that an eruption is imminent or that progression to an eruption from the current level of unrest is certain. Mauna Loa updates are issued weekly.
This past week, about 118 small-magnitude earthquakes were recorded below the summit and upper elevation flanks of Mauna Loa — the majority of these occurred at shallow depths less than 15 kilometers (9 miles) below sea level. Global Positioning System measurements show low rates of ground deformation over the past week. Gas concentrations and fumarole temperatures at both the summit and at Sulphur Cone on the Southwest Rift Zone have remained stable over the past week. Webcams show no changes to the landscape. For more information on current monitoring of Mauna Loa, see: https://www.usgs.gov/volcanoes/mauna-loa/monitoring.
Three earthquakes were reported felt in the Hawaiian Islands during the past week: a M3.0 earthquake 21 km (13 mi) SSE of Waimea at 24 km (15 mi) depth on August 23 at 12:58 p.m. HST, a M2.0 earthquake 9 km (5 mi) E of Pahala at 31 km (19 mi) depth on August 22 at 7:19 p.m. HST, and a M4.0 earthquake 9 km (5 mi) E of Pahala at 31 km (19 mi) depth on August, 22 at 7:11 p.m. HST.
HVO continues to closely monitor Kilauea’s ongoing eruption and Mauna Loa for any signs of increased activity.
Please visit HVO’s website for past Volcano Watch articles, Kilauea and Mauna Loa updates, volcano photos, maps, recent earthquake info, and more. Email questions to askHVO@usgs.gov.
Volcano Watch is a weekly article and activity update written by U.S. Geological Survey Hawaiian Volcano Observatory scientists and affiliates.
